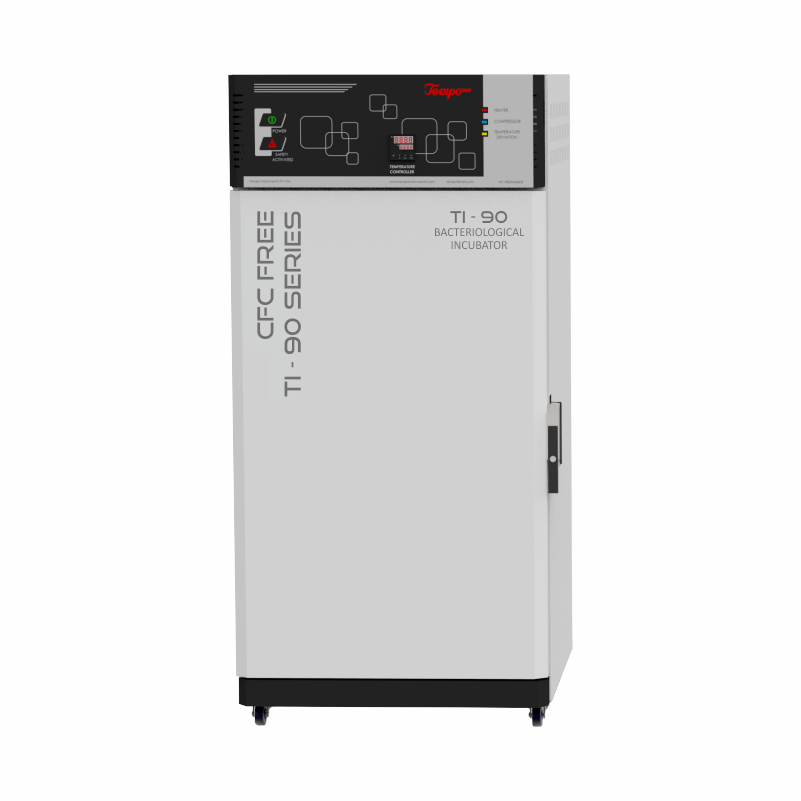

“TEMPO” make bacteriological incubator are specially designed for research laboratories, engineering lab, pharmaceutical lab, cosmetic industry, chemical lab, clinical lab, microbiological determination, pharmaceutical stability assays, food processing, QC, etc.

  • Temperature range              –     5°C above ambient to 60°C
  • Temperature accuracy        –    ±0.2°C
  • Supply                                    –     230V, AC

Standard Models

Inside SS 304 with mirror polish & outside mild steel duly powder coated.

GMP Models

Inside SS 316 with mirror polish & outside stainless steel 304 with the dull buff finish.

Construction

“TEMPO” make bacteriological incubator are made up of double walled construction. Full view inner acrylic door & front door with gasket & lock. The motorized blower is fitted on the backside for uniform temperature (only forced air circulation model). Insulation is provided by means of suitable PUF insulation. The unit is provided with adjustable stainless steel rod trays.

Technical Specification

Controlling System

Microprocessor based autotune PID temperature controller with a dual display of the value and process value for precise control of temperature with PT 100 sensor is used.

Air Circulation (only forced air circulation)

The motorized blower at the backside of the chamber develops a unique airflow system which ensures maximum uniform temperature distribution inside the chamber. A unique airflow ensures quick recovery after the doors are opened.

Heating System

Forced air circulation model – high quality SS tubular heaters are used for better heating conditions.

Natural convection model – the heating elements are made from the best quality Kanthal/Nichrome wire for refractory purpose.

Features

Full view observation acrylic door with a gasket to observe the sample inside the chamber. A specially designed stainless steel rod trays ensure uniform temperature distribution.

Safety Features

Safety standby thermostat to cut off heater supply in case of overshoot of temperature.

Models & Optional Features

Natural Convention Model

Models Capacity (litres)

Internal Dimensions

H × W × D (cm)

 Trays
TI – 90 A 43 35 × 35 × 35 2
TI – 90 B 91 45 × 45 × 45 2

Forced Air Circulation Model

Models Capacity (litres)

Internal Dimensions

H × W × D (cm)

 Trays
TI – 90 A S/G 43 35 × 35 × 35 2
TI – 90 B S/G 91 45 × 45 × 45 2
TI – 90 C S/G 100 50 × 50 × 40 2
TI – 90 D S/G 170 70 × 60 × 40 2
TI – 90 E S/G 200 60 × 60 × 60 2
TI – 90 F S/G 285 80 × 60 × 60 3
TI – 90 G S/G 325 90 × 60 × 60 4
TI – 90 H S/G 400 110 × 60 × 60 4
TI – 90 I S/G 600 125 × 70 × 70 4
TI – 90 J S/G 800 125 × 80 × 80 5
TI – 90 K S/G 1000 157 × 80 × 80 5
TI – 90 L S/G 1500 (double door) 146 × 150 × 69 10
TI – 90 M S/G 2000 (double door) 146 × 150 × 92 10

Optional Features

  • CFR 21 part 11 compliance software for data logger
  • Data logger
  • Data scanner complete with sensor
  • Safety digital temperature controller
  • Timer
