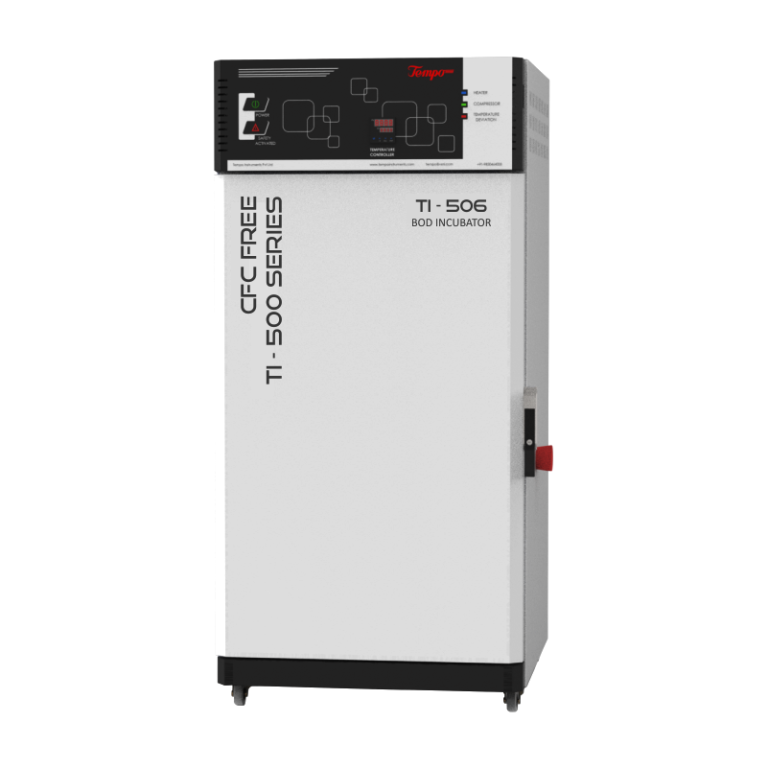

Series TI-500
“TEMPO” make BOD incubators are manufactured to comply requirement of industries. Specifically designed for the long term and stable continuous operation ideal for pharmaceuticals, biotechnology and research institutions for storage and incubation studies. Incubators to provide a condition for optimal growth of microbiology cultures, biological labs for the preservation of vaccines, serological and complement fixation tests, General low temperature uses in physical /chemical labs, R&D centre, quality control laboratory, general laboratories of industries, pharmaceuticals, chemicals, petrochemicals, oil & gas, cement, pulp and paper, fertilizers, defence, railways, paint etc…
Standard Models
Inside S.S. 304 with mirror polish & Outside mild steel powder coated.
GMP Models
Inside S.S. 316 with mirror polish & Outside stainless steel 304 with dull the buff finish
Specification
Temperature range
5°C to 60°C
Temperature accuracy
±0.5°C
Supply
230V, AC
Construction
Features
- Full view observation Acrylic door with a gasket to observe the sample inside the chamber. Interior illumination for working area. Specially designed stainless steel rod trays ensure uniform temperature distribution.
Safety Features
- Safety standby thermostat to cut off heater supply in case of overshoot of temperature. Inbuilt overload protector provided for the hermetically sealed compressor. Compressor ON delay timer (2 min) to safeguard the compressor.
Technical Specification
Controlling System
Microprocessor based autotune PID temperature controller with a dual display of set value & process value for precise control of temperature.
Refrigeration System
CFC free hermetically sealed Emerson Copeland make compressor for better cooling with R134 A (eco-friendly) refrigerant with a time delay to safe guard compressor system.
Validation Port
50mm validation porthole with silicon rubber seal to insert sensor for validation.
Sensor
PT 100 sensor is used for sensing the temperature.
Heating System
High quality S.S. tubular heaters are used for better heating.
Refrigeration System
The refrigeration is provided by means of CFC free hermetically sealed Emerson Copland compressor for better cooling with eco-friendly refrigerant. The cooling system is made up of split type so as one can place the compressor coupled with condenser unit in a well ventilated area to avoid hot air throw in the stability room. The inbuilt stand by refrigeration system is provided with auto change over the facility.
Optional Features
- PLC based control system
- Stand by refrigeration system.
- Ethernet / RS485 communication
- Data logger
- Data scanner complete with sensor
- SMS mobile alert system
- Door access security system
- Safety digital temperature controller
- Digital timer
- Safety digital temperature controller
- CFR 21 part 11 compliance software
| Models | Capacity (litres) | Internal Dimensions H × W × D (cm) | Trays |
|---|---|---|---|
| TI – 500 S / G | 100 | 50 × 50 × 40 | 2 |
| TI – 501 S / G | 170 | 70 × 60 × 40 | 2 |
| TI – 502 S / G | 200 | 60 × 60 × 60 | 2 |
| TI – 503 S / G | 285 | 80 × 60 × 60 | 3 |
| TI – 504 S / G | 325 | 90 × 60 × 60 | 4 |
| TI – 505 S / G | 400 | 110 × 60 × 60 | 4 |
| TI – 506 S / G | 600 | 125 × 70 × 70 | 4 |
| TI – 507 S / G | 800 | 125 × 80 × 80 | 5 |
| TI – 508 S / G | 1000 | 157 × 80 × 80 | 5 |
| TI – 509 S / G | 1500 (Double door) | 146 × 150 × 69 | 10 |
| TI – 510 S / G | 2000 (Double door) | 146 × 150 × 92 | 10 |
