Series TI-121
“TEMPO” make laminar airflow cabinets are a series of high efficiency clean room workbenches designed to protect equipment and other contents of the work zone from particulates.
In a vertical laminar airflow cabinet, filtered air blows on the work zone and leaves through the holes in the base of three sides SS 304 covered sheet. As compared to horizontal type, vertical flow cabinet can provide greater operator protection.
Temperature range
20°C to 35°C
Temperature accuracy
±1°C
Supply
230V, AC
Controlling System
Temperature is controlled by means of microprocessor based PID controller cum indicator. Refrigeration is achieved by means of hermetically sealed compressor system of Emerson Copeland make with CFC free refrigerant. A circulation pump of suitable output is provided in order to maintain a uniform temperature throughout the chamber. Best quality stainless steel corrosion resistant heaters are used.
Standard Models
Inside S.S. 304 with mirror polish & outside mild steel powder coated.
GMP Models
Inside S.S. 316 with mirror polish & outside stainless steel 304 with the dull buff finish.
Specification
Max surface temp
300°C to 350°C
Construction

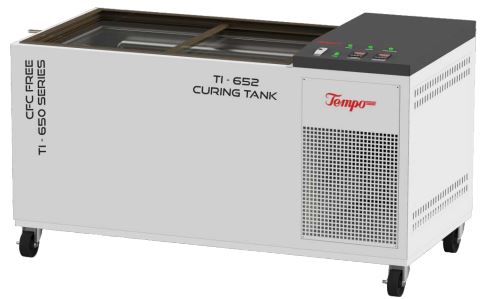

“TEMPO” make cement curing tank is made of sturdy construction with stainless steel inner chamber and galvanised iron sheet exterior duly powder coated with epoxy paint. The chamber is suitably insulated. The sample holder baskets/trays are designed keeping in mind the difficulties the user faces with sample handling. The construction is complete with provision for water inlet and drain valve.
Features
- In build LCD controller with a display of airflow speed and life of UV light and HEPA filter
- Audiovisual alarm for filter blockage
- Flange type prefilter of 5-micron capacity
- Miniplate box type HEPA filter of 99.99%
- Backward curved centrifugal fans with less noise and vibration
- High efficiency UV lamp comes with strong germicidal powder and disinfects the area
- Static pressure is measured by Magnehlic guage
- In built timer for UV and HEPA filter
Optional Features
- Provision for gas valve
- Provision for water valve
Advantages
- Inbuilt timer for UV light
- Specialised sound absorbers material to reduce the noise
- Facility to reduce the speed to the authorised person
- Audiovisual alarm for filter blockage
- Provision of electrical socket
Application
- Plant tissue culture
- Media plate preparation
- Electronic inspection
- Media device assembly
- Pharmacy drug preparation
- General lab work
- Semiconductor industry
- Aeronautics industry
| Models | No. of Cubes | Internal Dimensions L × W × H (cm) | No. of Baskets |
|---|---|---|---|
| TI – 651 | 108 | 105 × 50 × 55 | 6 |
| TI – 652 | 162 | 105 × 75 × 55 | 9 |
| TI – 653 | 216 | 140 × 75 × 55 | 12 |
| TI – 654 | 270 | 170 × 75 × 55 | 15 |
| TI – 655 | 360 | 170 × 100 × 55 | 20 |
