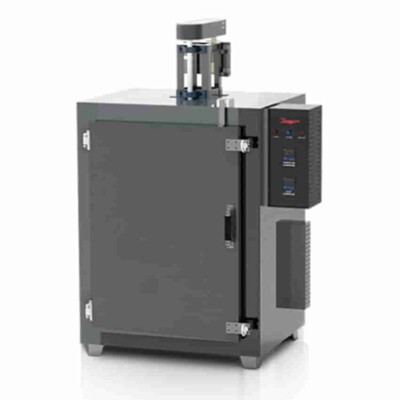

Series TI-128HT
“TEMPO” make TI – 128HT series ovens are made of triple-walled construction. The motorized blower with V-belt fitted on the top side of the chamber for re-circulation of air to maintain the uniformity of temperature inside the chamber. The unit is insulated with 4” high grade glass wool. Single door fitted on heavy hinges. The unit is provided with user friendly adjustable stainless steel rod mesh trays.
Standard Models
Inside SS 304 with mirror polish & outside mild steel powder coated.
GMP Models
Inside SS 316 with mirror polish & outside stainless steel 304 with the dull buff finish.
Specification
Temperature range
50°C to 450°C
Temperature accuracy
±1°C
Temperature uniformity
±1% of the set temperature
Supply
230V, AC
Construction
Features
- The door is fitted on the heavy hinges with a ceramic gasket to avoid the losses. The specially designed stainless steel wire mesh/rod trays ensure uniform temperature distribution.
Safety Features
- Safety digital temperature controller switch off the heater supply in case of temperature overshoot and creates an audio alarm.
Technical Specification
Controlling System
Two separate imported microprocessors based autotune PID controller with CE mark & dual display of set value & process value for precise control of temperature.
Heating System
High-quality U shape SS tubular heating elements used on the side walls to maintain uniform condition inside the chamber.
Air Circulation
The motorized blower with a V belt drive on the top side of the chamber develops the unique airflow distribution inside the chamber. The unique airflow system ensures quick recovery after the doors are opened.
Optional Features
- CFR 21 part 11 compliance software for data logger
- Data logger
- Data scanner complete with sensor
- Timer
| Models | Capacity (litres) | Internal Dimensions H × W × D (cm) | Trays |
|---|---|---|---|
| TI – 128 A HT | 43 | 35 × 35 × 35 | 2 |
| TI – 128 B HT | 91 | 45 × 45 × 45 | 2 |
| TI – 128 C HT | 122 | 60 × 45 × 45 | 3 |
| TI – 128 D HT | 216 | 60 × 60 × 60 | 3 |
| TI – 128 E HT | 324 | 90 × 60 × 60 | 4 |
