Series TI-121

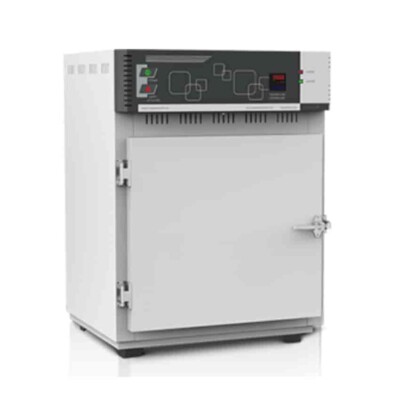

“TEMPO”make lab precision ovens are provided with the forced air circulation provided by means of motorized blower fitted on the oven for recirculation of air to maintain the uniformity of temperature inside the chamber.
Standard Models
Inside SS 304 with mirror polish & outside mild steel powder coated.
GMP Models
Inside SS 316 with mirror polish & outside stainless steel 304 with the dull buff finish.
Specification
Temperature range
5°C above ambient to 300°C
Temperature accuracy
±0.2°C
Temperature uniformity
±2°C
Supply
230V, AC
Construction
Ovens are made of double wall with backside triple. The unit is insulated with 3″ high grade glass wool. The door is fitted on heavy hinges. The unit is provided with adjustable stainless steel rod trays.
Features
- Safety cum stand by a thermostat to cut off the heater supply in case of temperature overshoot. The specially designed stainless steel ensures uniform temperature distribution.
Safety Features
- Safety standby thermostat to cut off the heater supply in case of overshoot of temperature.
Technical Specification
Controlling System
Imported microprocessor-based autotune PID controller with CE mark and dual display of set value and process value.
Heating System
SS tubular heating elements are used on the back walls to maintain uniform condition inside the chamber.
Air Circulation
The motorized blower with the insulated shaft at the backside of the chamber develops a unique airflow system which ensures maximum uniform temperature inside the chamber. The unique airflow ensures quick recovery after the door opening.
Optional Features
- CFR 21 part 11 compliance software for data logger
- Data scanner complete with sensor
- Data logger
- Safety digital temperature controller
- Timer
- Documentation IQ, OQ and PQ provided with validation
Hot Air Oven – Models & Optional Features
| Models | Capacity (litres) | Internal Dimensions H × W × D (cm) | Trays |
|---|---|---|---|
| TI – 130 A | 43 | 35 × 35 × 35 | 2 |
| TI – 130 B | 91 | 45 × 45 × 45 | 2 |
| TI – 130 C | 122 | 60 × 45 × 45 | 3 |
| TI – 130 D | 216 | 60 × 60 × 60 | 3 |
| TI – 130 E | 324 | 90 × 60 × 60 | 4 |
