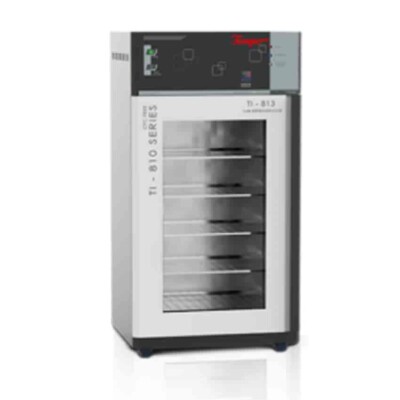

Series TI-810
“TEMPO” make glass door refrigerators are stable and reliable with the refrigerated environment for exact laboratory requirements. Lab refrigerators are used for maintaining storage conditions of a product, to prevent its exposure to low temperature applications, where the temperature requirements are on the lower side. Ideal temperature environment for clinical research, pharmaceutical and industrial use. Adjustable shelves and wide range set point for varying laboratory applications including chromatography and pharmaceutical storage. The application includes refrigerated storage of vaccines, reagents, cultures, medicines and blood samples.
Standard Models
Inside SS 304 with mirror polish & outside mild steel powder coated.
GMP Models
Inside SS 316 with mirror polish & outside stainless steel 304 with the dull buff finish.
Specification
Temperature range
2°C to 8°C
Temperature accuracy
±0.5°C
Temperature uniformity
±2°C
Supply
230V, AC
Construction
“TEMPO” make glass door refrigerators are made of double walled and triple at backside construction. Front door multi glass fitted in mild steel powder coated or SS 304 with full-length magnetic gasket for proper sealing with lock and key. Full view inner acrylic door. The motorized blower is fitted on the back side for uniform temperature even under loaded conditions. 3” thick PUF insulation. The unit is provided with adjustable stainless steel rod trays. The equipment is mounted on caster wheels for easy movement.
Features
Full view observation acrylic door with a gasket to observe the sample inside the chamber. Interior illumination for working area.
Specially designed stainless steel rod trays ensure uniform temperature distribution.
Safety Features
- Safety standby thermostat to cut off heater supply in case of overshoot of temperature.
- Safety audio visual alarms for temperature overshoot & undershoot.
- Compressor ON delay timer (2 min) to safe guard the compressor.
Technical Specification
Controlling System
Microprocessor based auto tune PID temperature controller with a dual display of set value & process value for precise control of temperature.
Sensor
PT 100 sensor is used for temperature & electronic type sensor for humidity.
Heating System
High quality SS tubular heaters are used for better heating.
Refrigeration System
CFC Free hermetically sealed Emerson Copeland make compressor for better cooling with R134 A (Eco Friendly) refrigerant with a time delay to safeguard compressor system.
Optional Features
- PLC for auto change over for standby refrigeration system
- CFR 21 part 11 compliance software for PLC with RS 485 or ethernet communication
- Stand by refrigeration
- Data logger
- CFR 21 part 11 compliance software for data logger
- Data scanner complete with sensor
- SMS mobile alert system
- Door access security system
- Safety digital temperature controller
- Timer
| Models | Capacity (litres) | Internal Dimensions H × W × D (cm) | Trays |
|---|---|---|---|
| TI – 840 S / G | 100 | 50 × 50 × 40 | 2 |
| TI – 841 S / G | 170 | 70 × 60 × 40 | 2 |
| TI – 842 S / G | 200 | 60 × 60 × 60 | 2 |
| TI – 843 S / G | 285 | 80 × 60 × 60 | 3 |
| TI – 844 S / G | 325 | 90 × 60 × 60 | 4 |
| TI – 845 S / G | 400 | 110 × 60 × 60 | 4 |
| TI – 846 S / G | 600 | 125 × 70 × 70 | 4 |
| TI – 847 S / G | 800 | 125 × 80 × 80 | 5 |
| TI – 848 S / G | 1000 | 157 × 80 × 80 | 5 |
| TI – 849 S / G | 1500 (Double door) | 146 × 150 × 69 | 10 |
| TI – 850 S / G | 2000 (Double door) | 146 × 150 × 92 | 10 |
